Bluesun 600W Bifacial Half Cell Solar Panel, featuring the latest TOPCon N-Type technology. Designed for business applications, this panel offers an impressive efficiency of up to 23.2% and is built to withstand harsh environmental conditions, ensuring reliable performance.
| Model: | BSM600M10-72HNH |
| Solar Cell: | N-type Topcon |
| Number Of Cells: | 144 (6×24) |
| Power Range: | 580–600W |

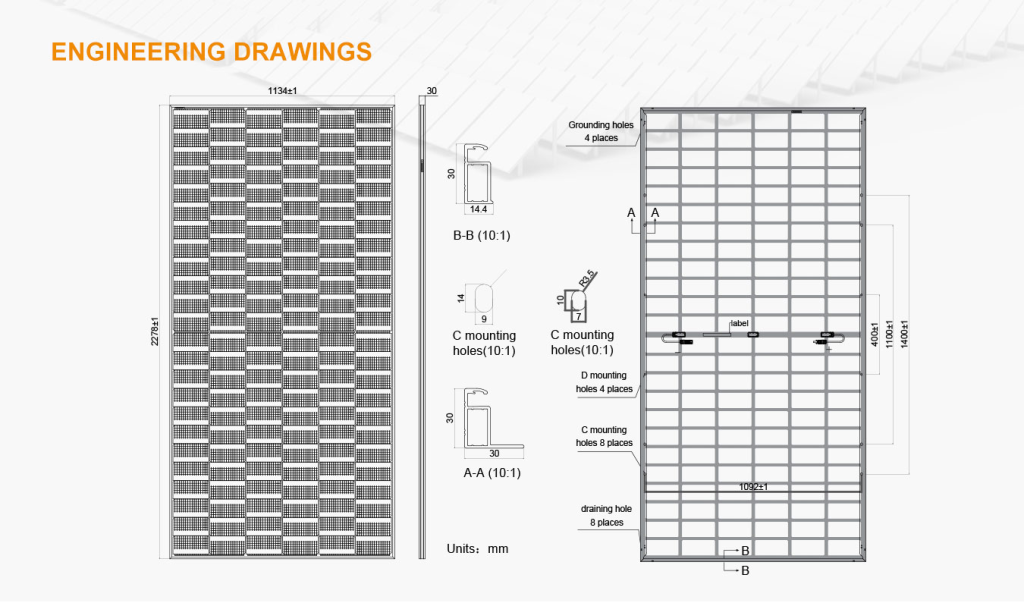

| Size: | 2278*1134*30MM |
| Certificate: | CE/TUV/UL/CEC |
| Payment: | T/T, L/C, Western Union |
| Warranty: | 30 Years |
Introduction
• Higher Power
For the same module type, the power of N-type modules is 15~20W higher than that of P-type modules.
• Lower Temperature Coefficient
The temperature coefficient of the P-type module is -0.34%/°C, while the N-type module is optimized to -0.30%/°C. Power generation is particularly prominent in high-temperature environments.
• Higher Bifaciality
For the same module type, the bifaciality of the N-type module is increased by 10~15% compared with the P-type module.
• Better Output Warranty
First-year degradation is less than 1% for N-type modules (compared to 2% for P-type). N-type modules come with a 30-year warranty for both monofacial and bifacial output (30 years for P-type bifacial and 25 years for P-type monofacial). Output power is guaranteed to be no less than 87.4% of the initial after 30 years.
| Module Type | BSM580M10-72HNH | BSM585M10-72HNH | BSM590M10-72HNH | BSM595M10-72HNH | BSM600M10-72HNH |
|---|---|---|---|---|---|
| Maximum Power (Pmax/W) | 580 | 585 | 590 | 595 | 600 |
| Operating Voltage (VmpM) | 43.28 | 43.48 | 43.68 | 43.88 | 44.08 |
| Operating Current (Imp/A) | 13.41 | 13.47 | 13.53 | 13.59 | 13.65 |
| Open-Circuit Voltage (Voc/V) | 51.64 | 51.84 | 52.04 | 52.24 | 52.44 |
| Short-Circuit Current (Isc/A) | 14.29 | 14.33 | 14.37 | 14.41 | 14.45 |
| Module Efficiency (%) | 22.5 | 22.7 | 22.8 | 23 | 23.2 |
| STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5 | |||||
